EPM 11.2 is released 35


Oracle Hyperion Enterprise Management (EPM) 11.2 was released on Dec 18th, and I guess that was an important day for the EPM/CPM market. OneStream 5.3 version was also released on the same day.

I opted to download Planning Plus, and the installer size (11 items, including the client installers) is 16 Gb.

I found out that (even in 2019) there are issues with spaces!. Well, part of the problem is I’m using a user name that got spaces and the installer; specifically, when you are installing OPMN (Essbase) doesn’t like spaces.

Installation

Here is the first error during installation.

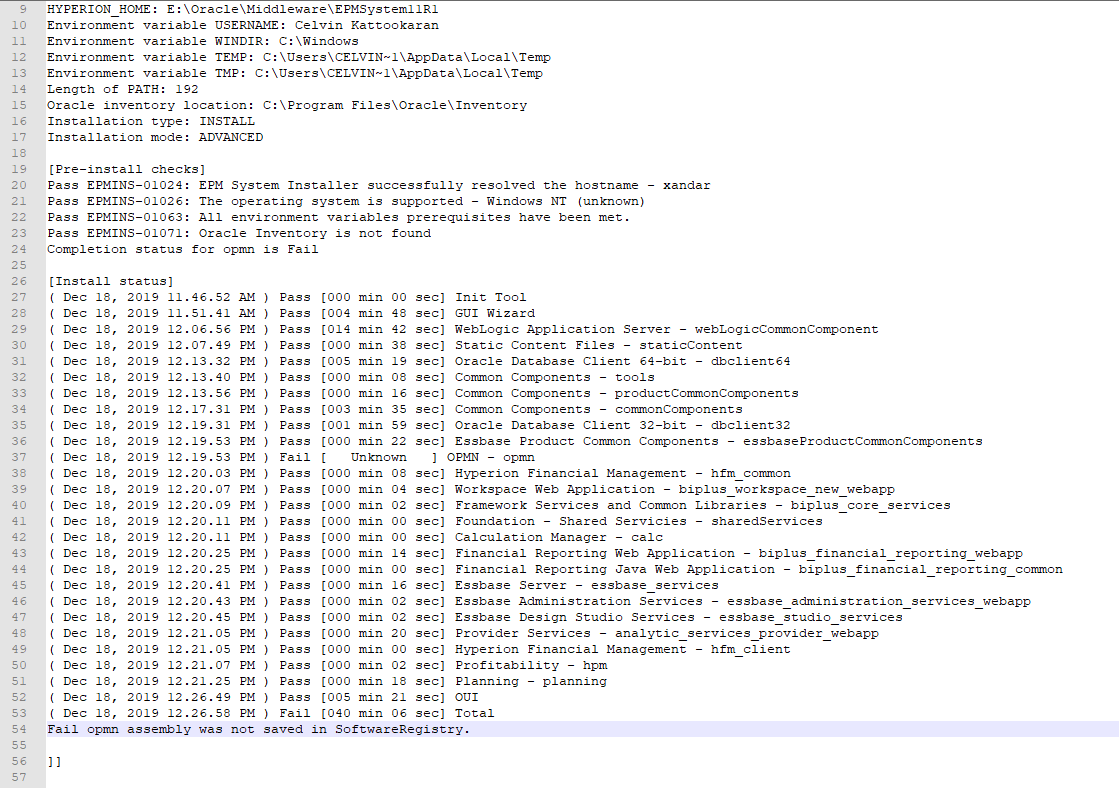

The log file says Fail opmn assembly was not saved in the SoftwareRegistry.

I was wondering why it wouldn’t save in the register. Now, this started a wild goose chase and finally found the log file E:\Oracle\Middleware\EPMSystem11R1\diagnostics\logs\install\common-opmn-patchset-oui-out.log.

My user name is Celvin Kattookaran (yeah, call me a narcissist πŸ™‚ ), and there you go, it doesn’t like spaces.

Installation went fine when I used a user name without spaces.

Configuration

I went with the assumption that I know this like the back of my hand. Boy, I was wrong about it.

Errors, and more errors.

First, let’s talk about Pre-Configuration failure. That can be a common mistake. I clicked on Config after the installation and, as a result, the below-given error.

Yup, I’m still an Administrator, UAC is turned off. However, I didn’t use the “Run as an Administrator” option.

Before running the configuration, Please make sure that you use the “Run as administrator” option.

Deploy to Application server failure is the result of (me being stupid and not reading the docs) the new Middleware upgrade. EPM 11.2 is now shipped with Weblogic 12 c (12.2) even though the configtool.log says,

[EPMCFG] [TRACE] [EPMCFG-01725] [oracle.EPMCFG] [tid: 64] [ecid: 40662168-3db7-4ea7-b459-c1399a086f20-00000007,0] [SRC_CLASS: com.hyperion.config.wizard.AppServerSelectionField] AppServer selected: WebLogic 10.

Fusion middleware components need schemas before you can configure them, so you cannot skip this step.

Here is the error from wlst_debug.log

Running RCU utility

Point towards your database instance and supply a SYSDBA user and password. If you don’t want to use a SYSDBA user, please go through the link provided.

You can create multiple schemas on the same server by changing the prefixes.

Please provide a password for the schemas, and I went with the same password for all schemas.

Once done, you’ll get an option to manage tablespaces. Once again, I went with the defaults.

A couple of summary screens and you are done with Repository creation utility.

You can read more about RCU and different options here.

If you go through it, you’ll understand that you cannot re-use the same schema on multiple servers.

Once the repositories get created, you must update the RCUSchema.properties file so that the config tool can pick it up.

Here is the screen that I wished(longed) to see.

Now it is time to log in and find out if all the products are new and shiny!

Well, it seems like there is one more missing piece to the puzzle.

Another error during the start-up of Foundation Services.

Caused By: weblogic.security.SecurityInitializationException: Authentication denied: Boot identity not valid. The user name or password or both from the boot identity file (boot.properties) is not valid. The boot identity may have been changed since the boot identity file was created. Please edit and update the boot identity file with the proper values of username and password. The first time the updated boot identity file is used to start the server, these new values are encrypted.
	at weblogic.security.service.CommonSecurityServiceManagerDelegateImpl.doBootAuthorization(CommonSecurityServiceManagerDelegateImpl.java:1152)
	at weblogic.security.service.CommonSecurityServiceManagerDelegateImpl.postInitialize(CommonSecurityServiceManagerDelegateImpl.java:1272)
	at weblogic.security.service.SecurityServiceManager.postInitialize(SecurityServiceManager.java:586)
	at weblogic.security.SecurityService.start(SecurityService.java:130)
	at weblogic.server.AbstractServerService.postConstruct(AbstractServerService.java:76)
	Truncated. see log file for complete stacktrace
Caused By: javax.security.auth.login.FailedLoginException: [Security:090938]Authentication failure: The specified user failed to log in. weblogic.security.providers.authentication.LDAPAtnDelegateException: [Security:090295]caught unexpected exception, No such object
	at com.bea.common.security.utils.ExceptionHandler.throwFailedLoginException(ExceptionHandler.java:62)
	at weblogic.security.providers.authentication.LDAPAtnLoginModuleImpl.login(LDAPAtnLoginModuleImpl.java:368)
	at com.bea.common.security.internal.service.LoginModuleWrapper$1.run(LoginModuleWrapper.java:117)
	at java.security.AccessController.doPrivileged(Native Method)
	at com.bea.common.security.internal.service.LoginModuleWrapper.login(LoginModuleWrapper.java:114)
	Truncated. see log file for complete stacktrace
>

How is that possible, boot.properties file was generated by the config tool and how can that be wrong?

I did check E:\Oracle\Middleware\user_projects\domains\<epminstancename>\servers\FoundationServices0\security\boot.properties file and that is the correct user name and password.

Taking a cue from another message in the log file, I decided to start the Admin server.

<Dec 23, 2019 10:39:00 AM EST> <Info> <Management> <BEA-141307> <Unable to connect to the Administration Server. Waiting 5 second(s) to retry (attempt number 1 of 3).>
<Dec 23, 2019 10:39:13 AM EST> <Info> <Management> <BEA-141307> <Unable to connect to the Administration Server. Waiting 5 second(s) to retry (attempt number 2 of 3).>
<Dec 23, 2019 10:39:26 AM EST> <Info> <Management> <BEA-141307> <Unable to connect to the Administration Server. Waiting 5 second(s) to retry (attempt number 3 of 3).>
<Dec 23, 2019 10:39:39 AM EST> <Info> <Management> <BEA-141298> <Could not register with the Administration Server: java.rmi.RemoteException:
 [from AdminURL 0] weblogic.deploy.service.internal.transport.UnreachableHostException: [Deployer:149145]Unable to contact "null". Deployment is deferred until "null" becomes available. WARNING: If this is a redeploy app and contains JSP pages that have been touched, these JSP changes wont be reflected when the server starts unless precompile is set to true in weblogic.xml; nested exception is:
	java.net.ConnectException: Tried all: '2' addresses, but could not connect over HTTP to server: 'Xander', port: '7001'
 failed reasons:
  [0] address:'Xander/10.0.2.15',port:'7001' : java.net.ConnectException: Connection refused: connect
  [1] address:'Xander/fe80:0:0:0:f890:dcb6:9101:5b00%6',port:'7001' : java.net.ConnectException: Connection refused: connect
 [from AdminURL 1] weblogic.deploy.service.internal.transport.UnreachableHostException: [Deployer:149145]Unable to contact "null". Deployment is deferred until "null" becomes available. WARNING: If this is a redeploy app and contains JSP pages that have been touched, these JSP changes wont be reflected when the server starts unless precompile is set to true in weblogic.xml; nested exception is:
	java.net.ConnectException: Tried all: '1' addresses, but could not connect over HTTP to server: '10.0.2.15', port: '7001'
 failed reasons:
  [0] address:'/10.0.2.15',port:'7001' : java.net.ConnectException: Connection refused: connect
 [from AdminURL 2] weblogic.deploy.service.internal.transport.UnreachableHostException: [Deployer:149145]Unable to contact "null". Deployment is deferred until "null" becomes available. WARNING: If this is a redeploy app and contains JSP pages that have been touched, these JSP changes wont be reflected when the server starts unless precompile is set to true in weblogic.xml; nested exception is:
	java.net.ConnectException: Tried all: '1' addresses, but could not connect over HTTP to server: '[fe80:0:0:0:f890:dcb6:9101:5b00%6]', port: '7001'
 failed reasons:

I’m not a big fan of running Weblogic in the foreground, so I did install it as a service using a batch file.

Before doing that I did make a slight modification to <middleware home>\wlserver\server\bin\installSvc.cmd.

I did add the following lines after check_server_name function, as shown below.

: check_server_name
if not defined SERVICE_NAME (
set SERVICE_NAME="wlsvc %DOMAIN_NAME%_%SERVER_NAME%"
)

Once the above change is added, it is now time to edit the Install service call.

Here is my install script.

echo off
SETLOCAL
set HOST=Xander
set PORT=7001
set DOMAIN_NAME=XanderEPMSystem
set SERVICE_NAME=Oracle Weblogic Admin Server - Java Web Application (%DOMAIN_NAME%)
set SERVICE_DESCRIPTION=Provides access to Weblogic Adminstration Console
set USERDOMAIN_HOME=E:\Oracle\Middleware\user_projects\domains\%DOMAIN_NAME%
set SERVER_NAME=AdminServer
set PRODUCTION_MODE=false
set JAVA_OPTIONS=-Dweblogic.Stdout="E:\Oracle\Middleware\user_projects\domains\%DOMAIN_NAME%\servers\AdminServer\logs\AdminServer-stdout.log" -Dweblogic.Stderr="E:\Oracle\Middleware\user_projects\domains\%DOMAIN_NAME%\servers\AdminServer\logs\AdminServer-stderr.log"
set MEM_ARGS=-Xms256m -Xmx1024m
call "E:\Oracle\Middleware\user_projects\domains\%DOMAIN_NAME%\bin\setDomainEnv.cmd"
call "E:\Oracle\Middleware\wlserver\server\bin\installSvc.cmd"
ENDLOCAL

Run as an Admin and there you go, a new service got installed.

You might be asking, “Do we really need to install it as a service?”

The answer to that is, “It depends.”

I found that AdminServer must be running for the first time when you start an EPM service.

It is not needed after the first start; However, what I also found was there was a considerable difference in start-up timings when you got AdminServer running and when it is not.

Foundation Services took 1~2 minutes to start – AdminServer running
Foundation Services took 12~15 minutes to start – AdminServer not running.
